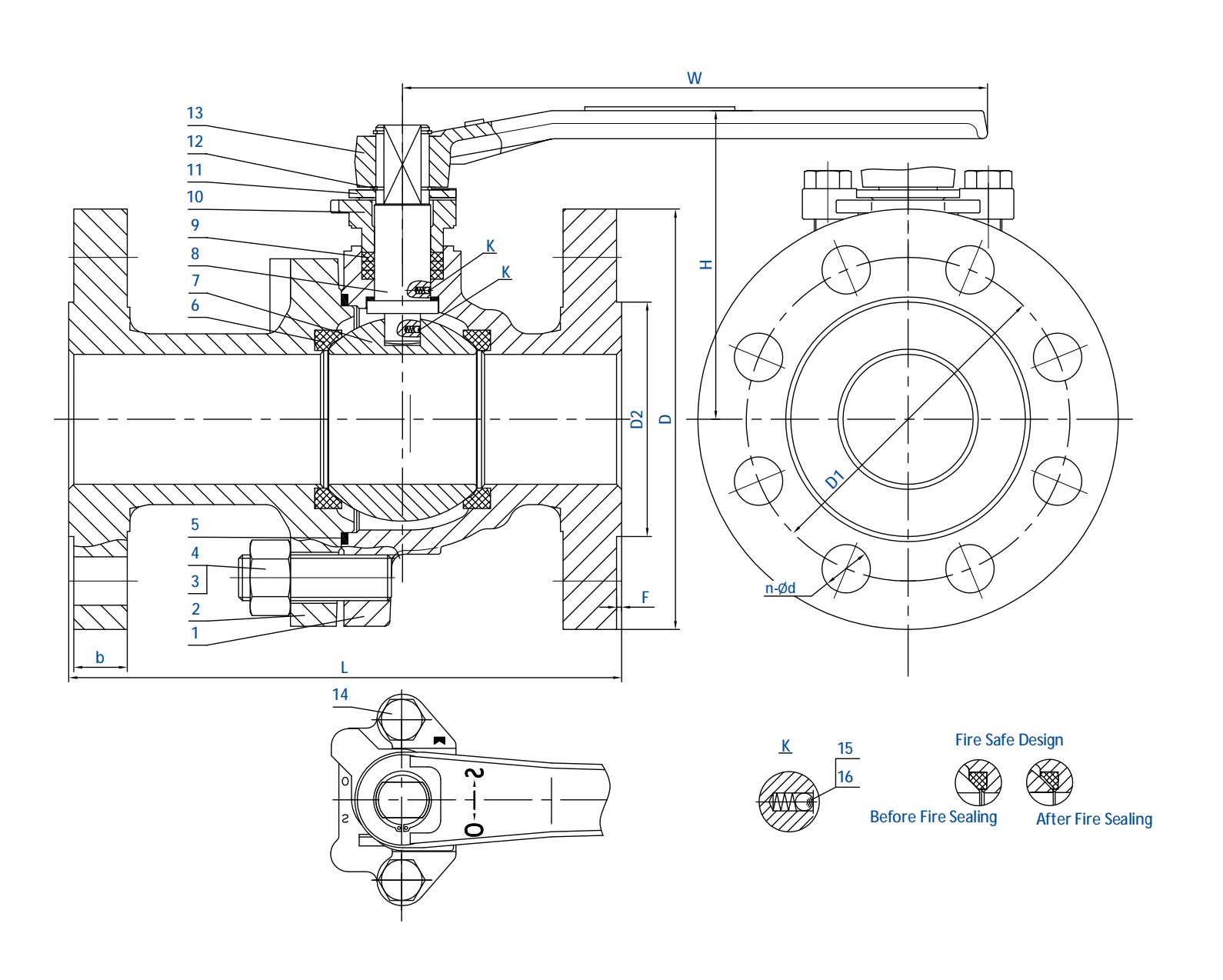

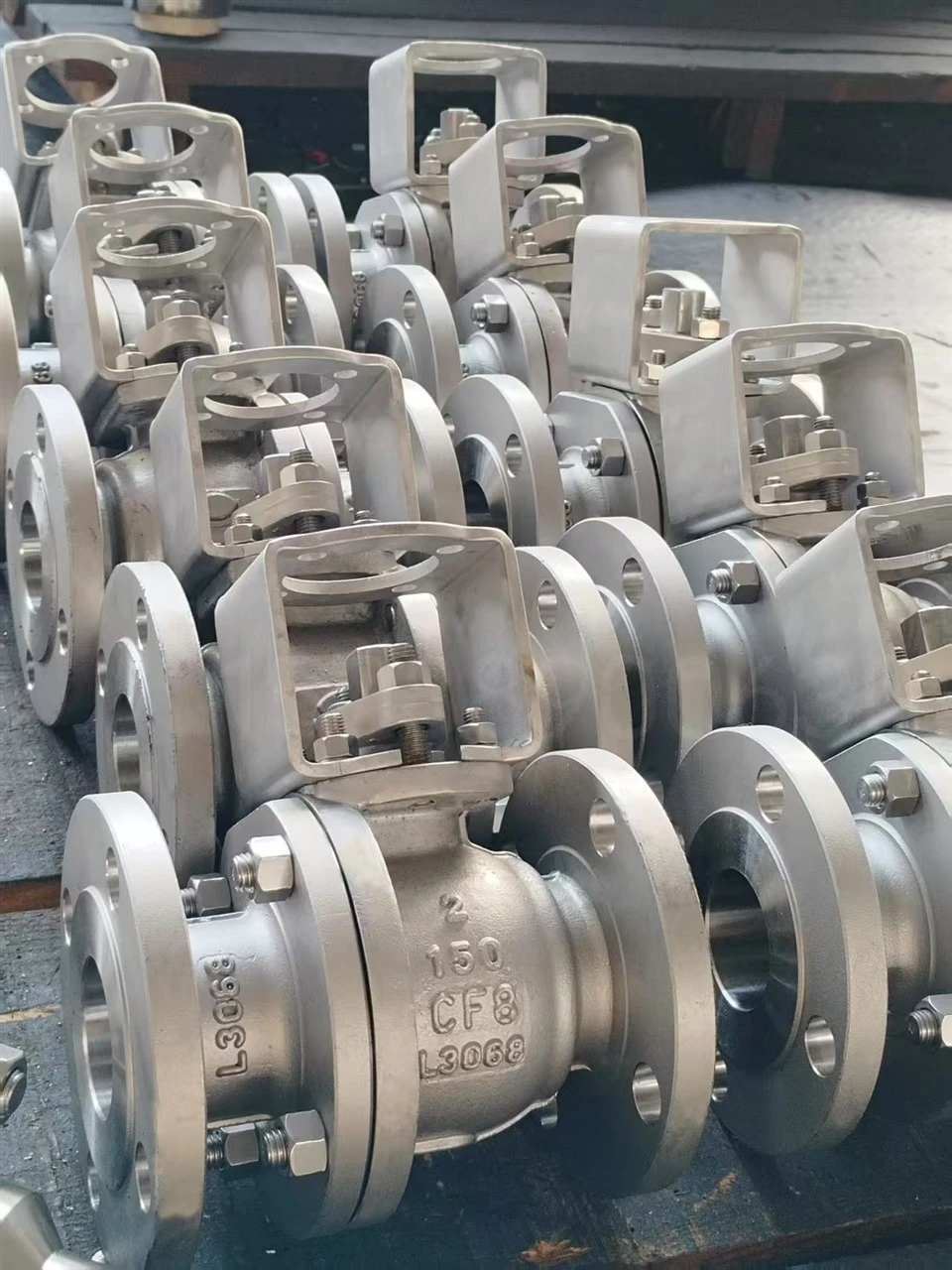

The Soft Sealing Ball Valve features a floating ball structure and soft-seal seats made of PTFE or RPTFE, achieving rapid opening and closing through 90° rotation. It is suitable for shutting off pipelines carrying water, oil, natural gas, compressed air, and some chemical media, and is primarily used in industrial pipelines operating at normal and medium-low temperatures.
Technical Specifications
|
Parameter |
Standard Specification |
Options |
|
Valve Type |
Soft Sealing Ball Valve |
Customized |
|
Structure |
Floating Ball, 2-Piece / 3-Piece |
Customized |
|
Nominal Size |
1/2"–12" / DN15–DN300 |
Customized |
|
Pressure Rating |
Class 150–300 / PN10–PN40 |
Class 600 / PN63 |
|
Valve Body |
WCB / A105 / CF8 / CF8M / CF3M |
Duplex / Super Duplex |
|
Ball Material |
SS304 / SS316 / SS316L |
Customized |
|
Seat Material |
PTFE / RPTFE / PEEK |
TFM / Devlon / Nylon |
|
Stem Material |
SS410 / SS304 / SS316 |
17-4PH / Customized |
|
Connection |
Flanged / Threaded / SW / BW |
Customized |
|
Port Type |
Full Port |
Reduced Port |
|
Design Standard |
API 608 / ASME B16.34 / ISO 17292 |
Customized |
|
Face-to-Face |
ASME B16.10 / EN 558 |
Customized |
|
Testing Standard |
API 598 / ISO 5208 / EN 12266-1 |
Customized |
|
Fire-Safe |
API 607 / ISO 10497 |
Optional |
|
Fugitive Emission |
ISO 15848-1 / API 624 |
Subject to Configuration |
|
Temperature |
According to Seat Material & Service |
Customized |
|
Operation |
Lever / Gearbox / Pneumatic / Electric |
Customized |
|
Media |
Water / Oil / Gas / Air / Selected Chemicals |
Subject to Compatibility |
Materials and Key Components
Valve Body and Ball: Available in materials such as WCB, A105, CF8, CF8M, CF3M, SS304, SS316, and SS316L, configured according to pressure and media requirements.
Valve Seat: PTFE is suitable for general corrosion-resistant applications; RPTFE offers better resistance to deformation and wear; PEEK is suitable for higher temperature and mechanical strength requirements.
Valve Stem: Features a blowout-proof structure, selectable from SS410, SS304, SS316, or other materials depending on the media and temperature.
Packaging: Available in PTFE or flexible graphite packing, selected according to temperature, media, and low-emission requirements.
Standards and Compliance
Design Standards: Can be designed and manufactured according to standards such as API 608, ASME B16.34, and ISO 17292. Structural length can be configured according to ASME B16.10 or EN 558.
Testing Standards
Housing and sealing tests can be conducted according to API 598, ISO 5208, or EN 12266-1. Specific acceptance levels will be confirmed upon order confirmation.
Fire Resistance and Low Emissions
Appropriate fire-resistant structures and low-emission sealing solutions can be configured according to project requirements. Related tests will be based on the specific product configuration.
Quality Documentation
Applicable documents such as ISO 9001, CE/PED, MTC, pressure test reports, and inspection reports can be provided upon order confirmation.
Manufacturing Capabilities
CNC Precision Machining
Valve bodies, balls, and key components are machined using CNC equipment, ensuring dimensional and assembly consistency.
Assembly and Testing
Production is completed after machining, cleaning, assembly, debugging, and pressure testing. Quality records are created for key processes.
Mass Production
Standard-specification mass production is supported. Production plans can be tailored to specifications, materials, and order quantities.
OEM/ODM Customization
Specification Customization: Special diameters, pressure ratings, structural lengths, and end connections are supported. Production can be based on drawings or data sheets.
Material Customization: Supports combinations of materials such as WCB, CF8M, CF3M, duplex stainless steel, and PTFE, RPTFE, and PEEK.
Actuator Configuration: Can be equipped with pneumatic and electric actuators and control accessories, and factory testing is performed.
OEM Marking: Supports logo, Valve Tag, batch number, flow identification, and customer packaging.
Export Packaging: Provides pallets, plywood boxes, wooden crates, and protective packaging suitable for sea freight and bulk shipments.
Packaging and Delivery
Export Packaging: Employs port protection, moisture-proof, and external protective packaging to reduce collisions and environmental impact during transportation.
Bulk Loading: Optimizes pallet and box layouts according to 20GP, 40GP, or 40HQ loading requirements.
Export Documentation: Can provide Commercial Invoice, Packing List, Certificate of Origin, MTC, Inspection Report, etc.
FAQ
Q: What seat materials are available?
A: PTFE, RPTFE, and PEEK, selected based on medium, temperature, pressure, and compatibility.
Q: Can you meet ISO 5208 Rate A?
A: We can perform corresponding sealing tests according to ISO 5208, based on product design and testing requirements.
Q: Do you offer fire-safe valves?
A: We can provide appropriate fire-resistant structures and perform API 607 or ISO 10497 related tests depending on the product configuration.
Q: Can you supply actuators?
A: Yes, pneumatic or electric actuators can be configured, and assembly and functional testing are provided.
Q: Can you provide MTC?
A: Yes, we can provide EN 10204 3.1 MTC and related quality documents according to the order.
Q: What is the MOQ?
A: Determined based on specifications, materials, quantity, and customization requirements.
Q: What is the lead time?
A: The specific lead time will be confirmed based on specifications, materials, quantity, and customization requirements.
Q: Can you manufacture from customer drawings?
A: We can manufacture according to customer drawings, data sheets, or technical specifications.
Q: Do you support OEM?
A: Yes, we support logo, Valve tag, packaging, and other OEM requirements.
Q: Can third-party inspection be arranged?
A: Yes, we can cooperate with third-party inspections according to order requirements.
